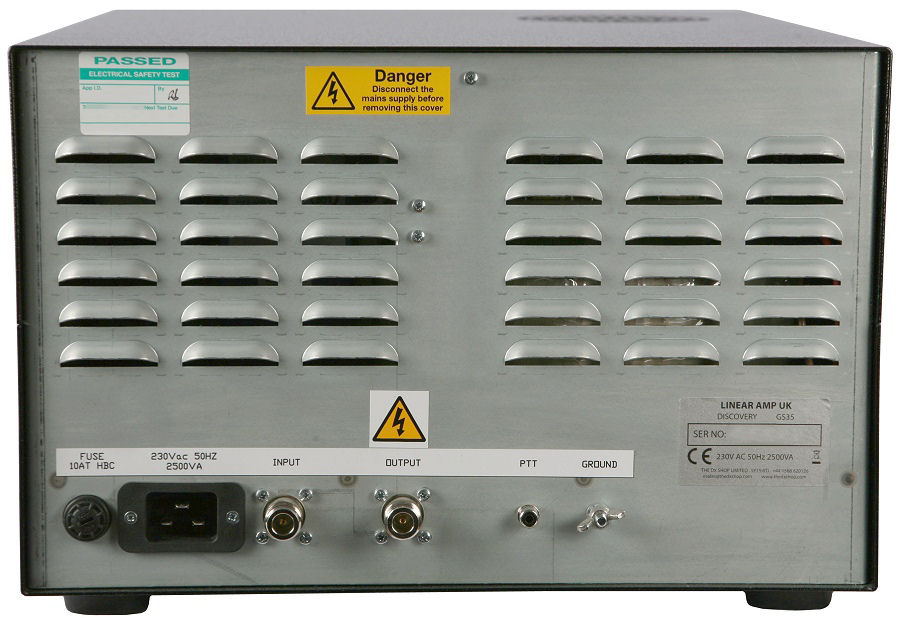

Linear Amp UK Discovery 6
| Type: |
Power Amplifier |
| Frequency Range: |
6 m (50-54 MHz) |
| Voltage: |
Mains: 230 VAC |
| Current Drain: |
13 A @ 230 VAC |
| Drive power: |
Max 100 W |
| Maximum Power output: |
1.5 KW (100% duty cycle) |
| Impedance: |
50 ohms, 2x N-jack |
| Dimensions (W*H*D): |
360 x 250 x 430 mm (14 x 9.75 x 17 inches) |
| Weight: |
29 Kg (63.9 lbs) |
| Manufactured: |
United Kingdom: xxxx-200x (Discontinued) |
| Other: |
Auto soft start. 3 minute warm up timer
1x GS35B triode
3CX1500A7 option (lower drive & 1.8 kW output) |
| Related Documents: |
|
 |
